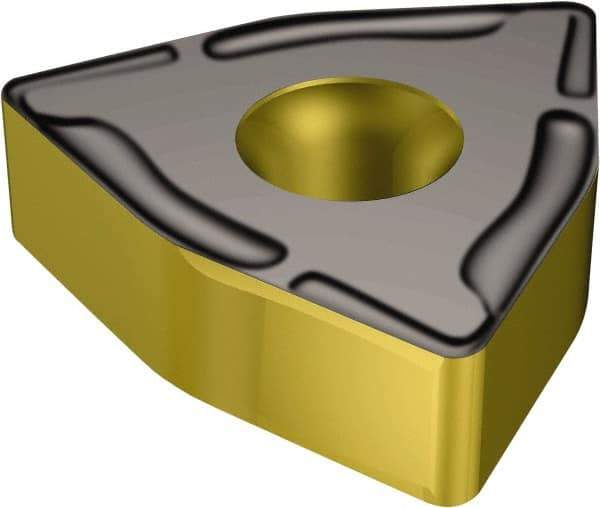

Sandvik Coromant - WNMX211251 MM Grade 4325 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 1-1/4" Inscr Circle, 12mm Thick, 5.1mm Corner Radius
Item #: 49428899
Brand: Sandvik Coromant
Model #: 6533042
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMX |
| Insert Size | 211251 |
| Material | Carbide |
| Inscribed Circle (mm) | 31.75 |
| Inscribed Circle (Decimal Inch) | 1.2500 |
| Inscribed Circle (Inch) | 1-1/4 |
| Thickness (Decimal Inch) | 0.4724 |
| Thickness (mm) | 12.00 |
| Corner Radius (mm) | 5.10 |
| Corner Radius (Decimal Inch) | 0.2008 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | MM |
| Hole Diameter (mm) | 9.12 |
| Hole Diameter (Decimal Inch) | 0.3591 |
| ISO Number | WNMX211251MM4325 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 6533042 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Insert Holding Method | Screw |
| Multi Use Application | Peeling |
| Shape | Trigon |
