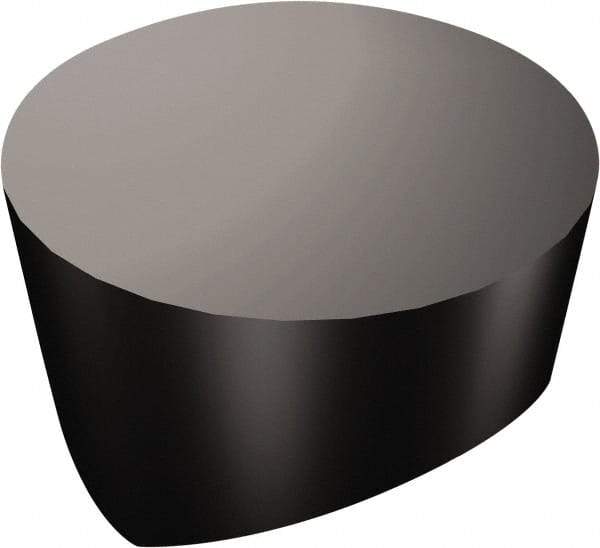

Sandvik Coromant - RCGX24 Grade 650 Ceramic Turning Insert - TiN Finish, Round, 1/4" Inscr Circle, 1/8" Thick
Item #: 49427198
Brand: Sandvik Coromant
Model #: 5738790
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 24 |
| Material | Ceramic |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Manufacturer's Grade | 650 |
| Coating | TiN |
| ISO Number | RCGX060600E650 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5738790 |
| Primary Workpiece Material | K; S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Shape | Round |
