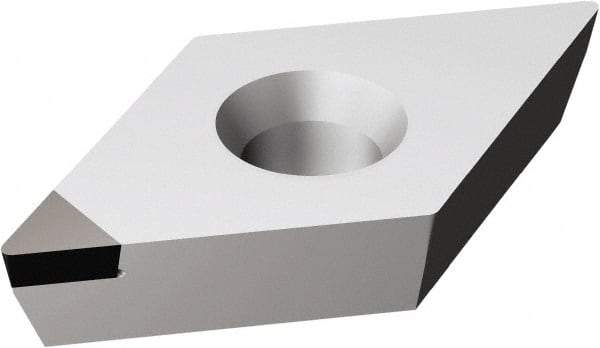

Sandvik Coromant - DCMW32.51 FP Grade CD05 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 49426703
Brand: Sandvik Coromant
Model #: 6257234
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | DCMW |
| Insert Size | 32.51 |
| Material | Polycrystalline Diamond (PCD) |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4579 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | CD05 |
| Coating | Uncoated |
| Chip Breaker | FP |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | DCMW11T304FPCD05 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 6257234 |
| Primary Workpiece Material | N |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 4.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.1614 |
| Insert Holding Method | Screw |
| Shape | Diamond |
