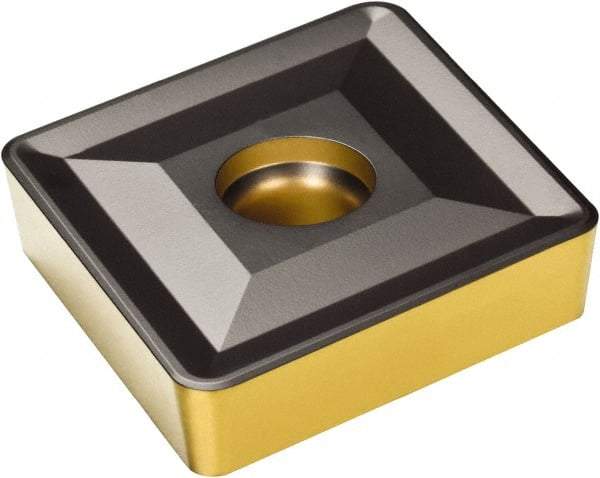

Sandvik Coromant - SCMT380932 XH Grade 4325 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Square, 1-1/2" Inscr Circle, 3/8" Thick, 1/8" Corner Radius
Item #: 49424286
Brand: Sandvik Coromant
Model #: 6532145
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 380932 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 1.5000 |
| Inscribed Circle (Inch) | 1-1/2 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3748 |
| Thickness (mm) | 9.52 |
| Corner Radius (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | XH |
| Hole Diameter (mm) | 9.00 |
| Hole Diameter (Decimal Inch) | 0.3543 |
| ISO Number | SCMT380932XH4325 |
| Relief Angle | 7 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 6532145 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 38.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4961 |
| Insert Holding Method | Screw |
| Shape | Square |
