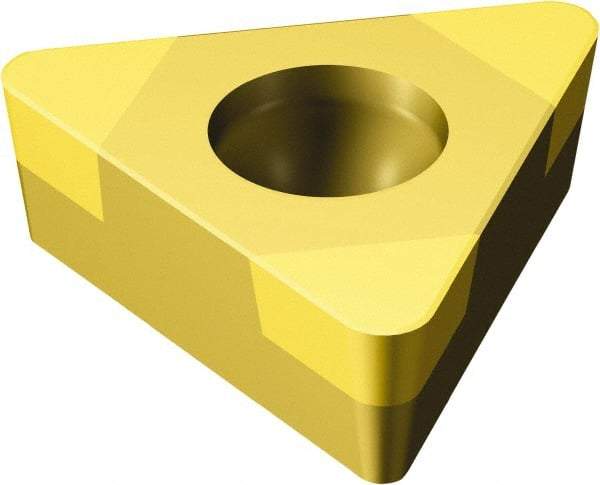

Sandvik Coromant - TCGW222 Grade 7525 CBN Turning Insert - TiN Finish, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 49420839
Brand: Sandvik Coromant
Model #: 6271952
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | TCGW |
| Insert Size | 222 |
| Material | CBN |
| Length (mm) | 10.74 |
| Length (Decimal Inch) | 0.4228 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 7525 |
| Coating | TiN |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | TCGW110308S01530F7525 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6271952 |
| Primary Workpiece Material | H |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 2.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.1142 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Negative Land/ER Treated |
| Shape | Triangle |
