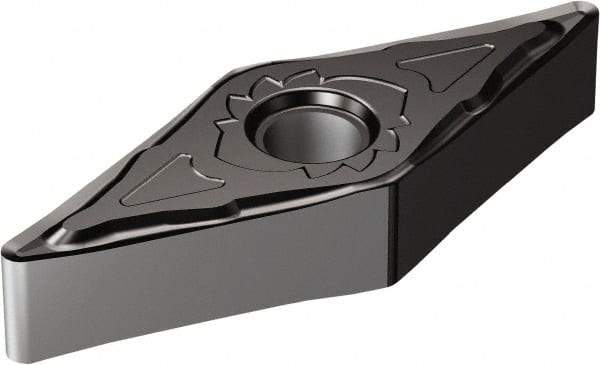

Sandvik Coromant - VNGG33.3 SGF Grade 1105 Carbide Turning Insert - TiAlN2 Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 0.1mm Corner Radius
Item #: 49408651
Brand: Sandvik Coromant
Model #: 6851303
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNGG |
| Insert Size | 33.3 |
| Material | Carbide |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6539 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN2 |
| Chip Breaker | SGF |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | VNGG160401SGF1105 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6851303 |
| Primary Workpiece Material | S |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 16.26 |
| Maximum Depth of Cut (Decimal Inch) | 0.6402 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
