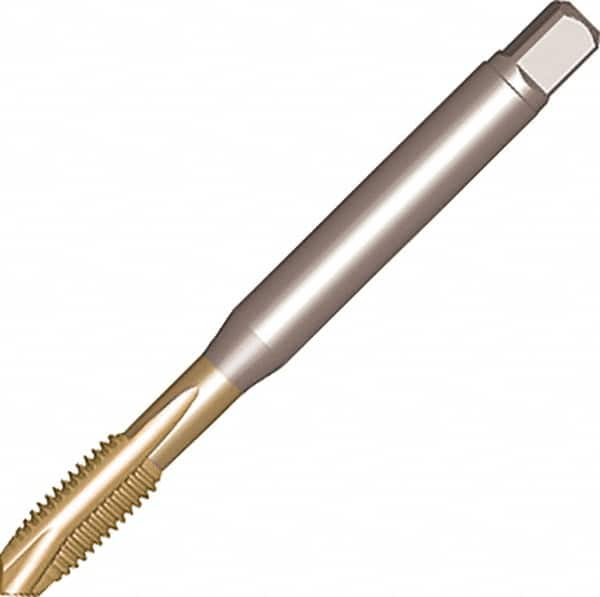

Sandvik Coromant - 5/16-18 UNC, 3 Flute, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 93.3mm OAL, 17.4mm Thread Length, 8mm Shank Diam, 2B Class of Fit, Series CoroTap 200
Item #: 49407265
Brand: Sandvik Coromant
Model #: 6539545
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/16-18 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 2B |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.6732 |
| Overall Length (mm) | 93.30 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.6850 |
| Thread Length (mm) | 17.40 |
| Series/List | CoroTap 200 |
| Neck Length (Decimal Inch) | 0.6929 |
| Style | Spiral Point |
| Tapping Depth (mm) | 35.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Material Application | Cast Iron; Stainless Steel; Steel |
