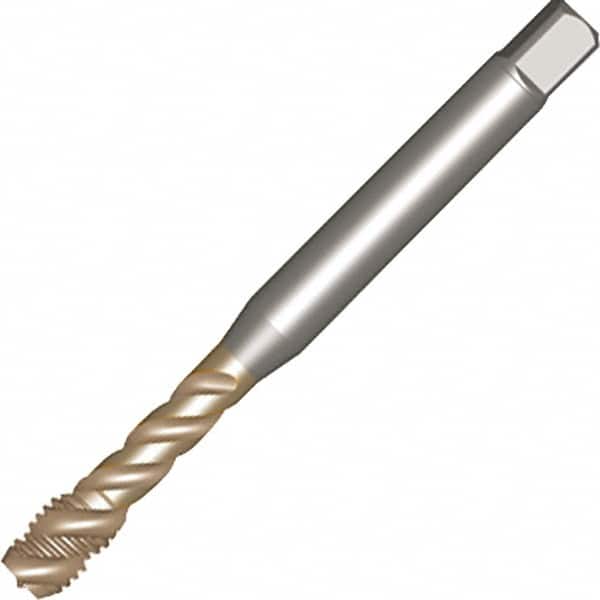

Sandvik Coromant - 5/8-11 UNC 4 Flute 2B Modified Bottoming Spiral Flute Tap - Powdered Metal, AlCrN Finish, 110mm OAL, Right Hand Flute, Right Hand Thread, Series CoroTap 300
Item #: 49405236
Brand: Sandvik Coromant
Model #: 6539610
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Aluminum chromium nitride (AlCrN) has higher-heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/8-11 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2B |
| Number of Flutes | 4 |
| Material | Powdered Metal |
| Finish/Coating | AlCrN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.00 |
| Helix Angle | 45 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.7874 |
| Thread Length (mm) | 20.00 |
| Flute Type | Fast Spiral |
| Series/List | CoroTap 300 |
| Neck Length (Decimal Inch) | 1.8799 |
| Tapping Depth (Decimal Inch) | 2.6772 |
| Tapping Depth (mm) | 68.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00 |
