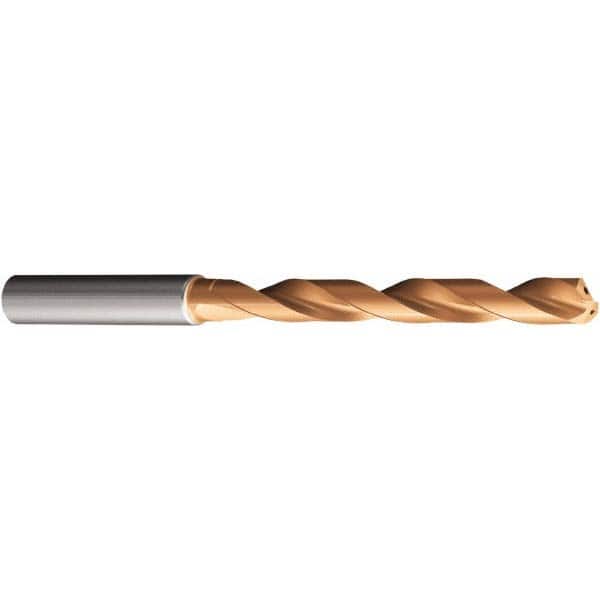

Jobber Length Drill Bit: 0.3125″ Dia, 140 °, Solid Carbide TiAlN Finish, 4.8819″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 49398985
Brand: Sandvik Coromant
Model #: 6423010
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Drill Bit Size (Inch) | 5/16 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 4.8819 |
| Flute Length (Decimal Inch) | 3.3465 |
| Flute By Diameter Ratio | 8.16121xD |
| Shank Diameter (mm) | 8.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.5512 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 1.30 |
| Drill Point Length (Decimal Inch) | 0.0512 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Specification Designation | ISO; DIN; ANSI |
