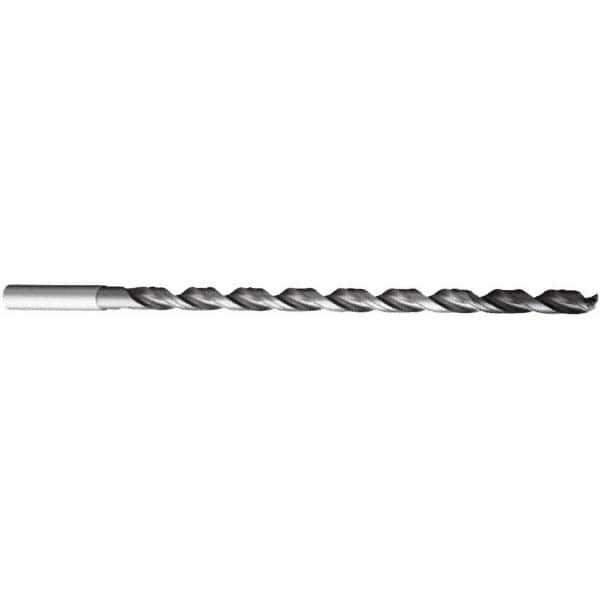

Extra Length Drill Bit: 0.2188″ Dia, 140 °, Solid Carbide TiAlN Finish, 3.937″ Flute Length, 5.5906″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 861
Item #: 49398563
Brand: Sandvik Coromant
Model #: 6151014
Product Specifications
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | CoroDrill 861 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Tool Application | Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | m7 mm |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Standards | COROMANT |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.2188 |
| Drill Point Length (mm) | 0.90 |
| Drill Point Length (Decimal Inch) | 0.0354 |
| Overall Length (Decimal Inch) | 5.5906 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Flute Length (Decimal Inch) | 3.9370 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (Decimal Inch) | 3.2677 |
| Specification Designation | ISO; ANSI |
