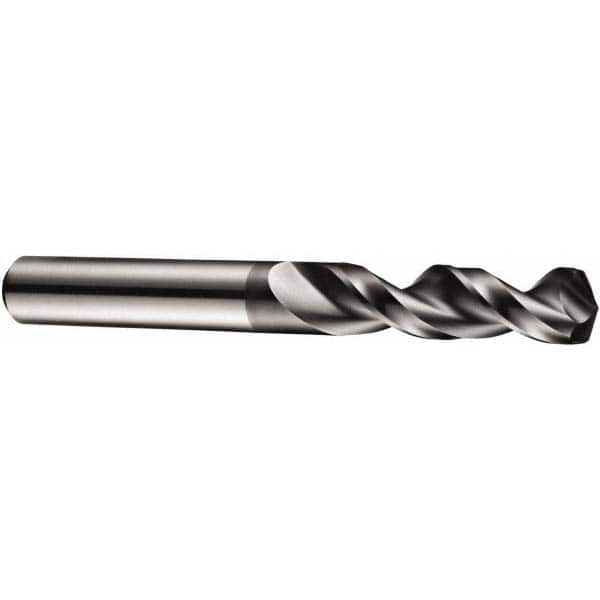

DORMER - 0.1023" 130° Spiral Flute Cobalt Screw Machine Drill Bit
Item #: 78976693
Brand: DORMER
Model #: 0052495
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Aluminum chromium nitride (AlCrN) has higher-heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace materials, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.1023 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | AlCrN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 14.00 |
| Overall Length (mm) | 43.00 |
| Point Type | Special Point Type |
| Shank Diameter (Decimal Inch) | 0.1024 |
| Specification Designation | ANSI; DIN |
| Spiral Type | Fast Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Series/List | A921 |
