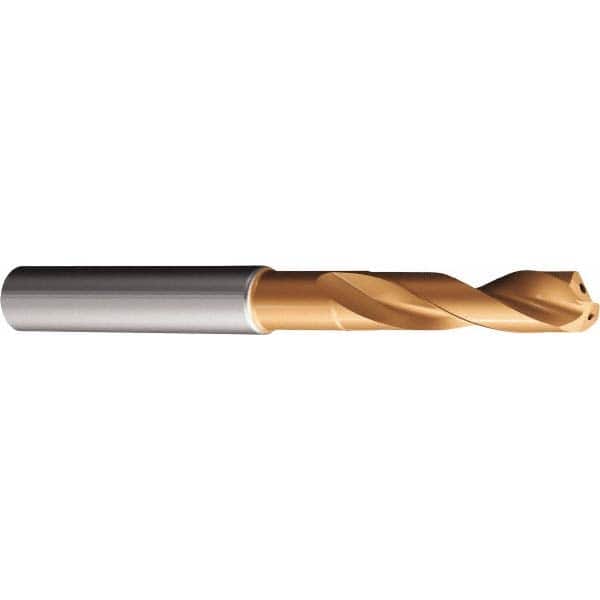

Screw Machine Length Drill Bit: 0.177″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 860
Item #: 49396948
Brand: Sandvik Coromant
Model #: 6422671
Product Specifications
| Drill Bit Size (Wire) | #16 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.1770 |
| Drill Tip Finish/Coating | TiAlN |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | CoroDrill 860 |
| Drill Length Type | Regular |
| Maximum Drilling Depth (Decimal Inch) | 0.5591 |
| Maximum Drilling Depth (mm) | 14.20 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.70 |
| Drill Point Length (Decimal Inch) | 0.0276 |
| Flute By Diameter Ratio | 3.15556xD |
| Flute Length (Decimal Inch) | 0.9449 |
| Flute Length (mm) | 24.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Specification Designation | ISO; DIN; ANSI |
