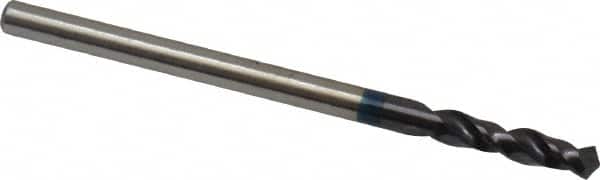

Accupro - #40 120° Spiral Flute Cobalt Screw Machine Drill Bit
Item #: 05493218
Brand: Accupro
Model #:
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.0980 |
| Drill Bit Size (Wire) | #40 |
| Drill Point Angle | 120 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 14.00 |
| Overall Length (mm) | 43.00 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.0980 |
| Specification Designation | DIN |
| Spiral Type | Fast Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Specification Number | DIN 1897 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
