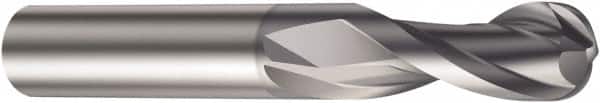

Sandvik Coromant - 1mm Diam, 3mm LOC, Solid Carbide Ball End Mill - AlCrN Finish, 38mm OAL, 3mm Shank Diam, Ball Flute
Item #: 49395759
Brand: Sandvik Coromant
Model #: 6259420
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum chromium nitride (AlCrN) has higher heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 1.00 |
| Mill Diameter (Decimal Inch) | 0.0394 |
| Length of Cut (mm) | 3.00 |
| Length of Cut (Decimal Inch) | 0.1181 |
| Material | Solid Carbide |
| Overall Length (mm) | 38.00 |
| Shank Diameter (mm) | 3.00 |
| Finish/Coating | AlCrN |
| Helix Angle | 30.00 |
| Extended Reach | Yes |
| Mill Diameter Tolerance (mm) | h7 |
| Mill Diameter Tolerance (Decimal Inch) | h7 |
| Flute Type | Ball |
| Shank Diameter Tolerance (mm) | h5 |
| Shank Diameter Tolerance (Decimal Inch) | h5 |
| Series/List | CoroMill Plura |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
