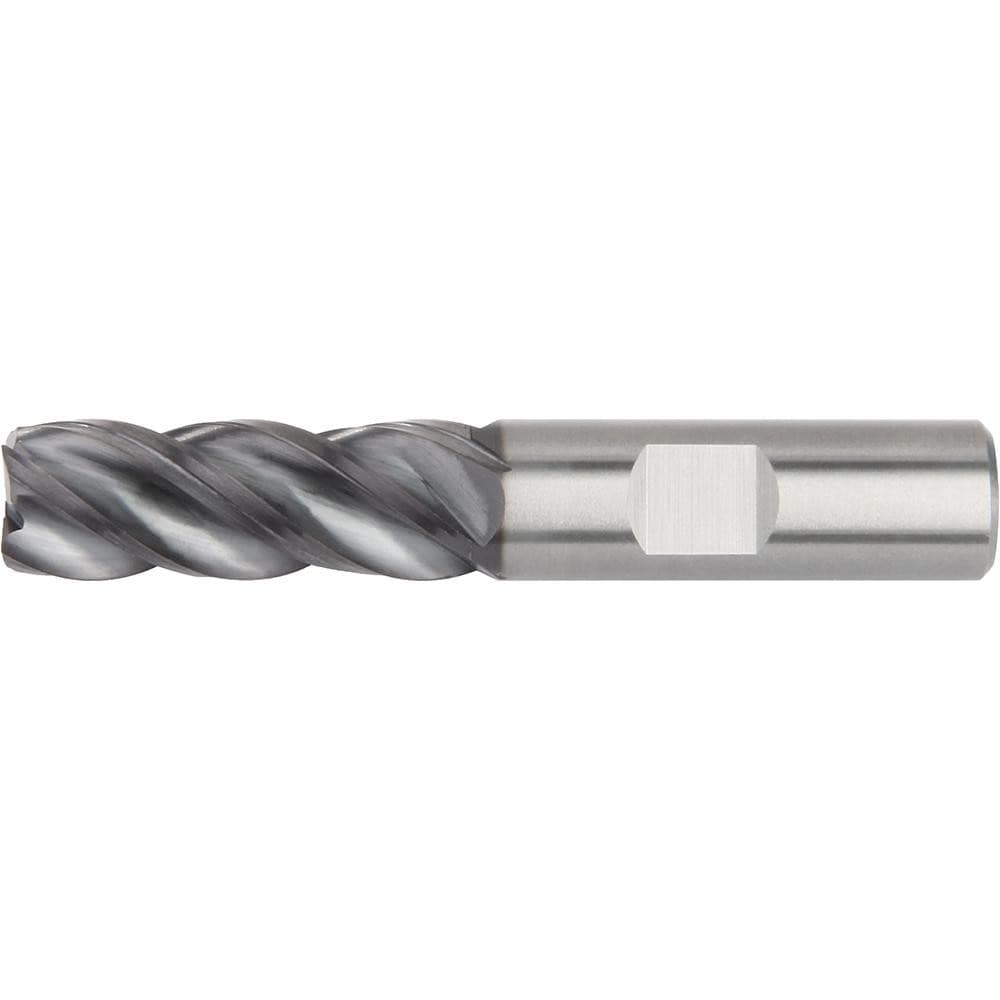

Square End Mill: 1/4" Dia, 3/4" LOC, 4 Flute, Solid Carbide
Item #: 34038232
Brand: Widia
Model #: 5576510
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (Inch) | 1/4 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 3/4 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material | High-Temp Alloy |
| Secondary Workpiece Material Code | S |
| Coating/Finish | WP15PE |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | WP15PE |
| Length Type | Regular |
| Neck Length (Decimal Inch) | 0.7500 |
| Neck Diameter (Decimal Inch) | 0.2500 |
| Reach Length (Decimal Inch) | 0.7500 |
| Reach Length (mm) | 19.05 |
| Series | 4V05 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
