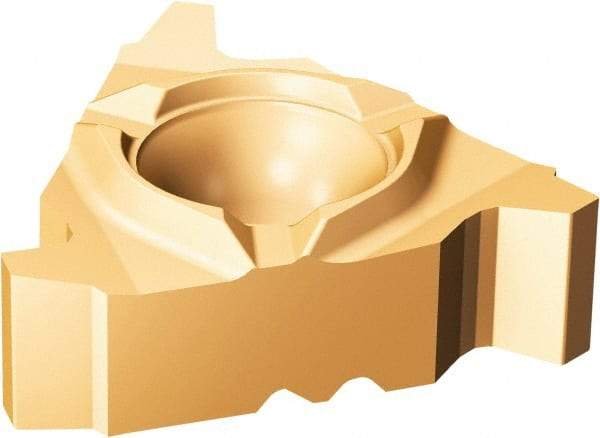

Sandvik Coromant - 26622 C Grade 1125, Internal Acme Threading Insert - 6 TPI Int Pitch, Right Hand Insert, TiAlN Finish, Carbide
Item #: 49378300
Brand: Sandvik Coromant
Model #: 6153996
Exact Tooling IR#: 04
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 22 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | Acme |
| Manufacturer's Grade | 1125 |
| Internal Pitch/TPI | 6 TPI |
| Coating | TiAlN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266RL22AC01A060M1125 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | C |
| Manufacturers Catalog Number | 6153996 |
