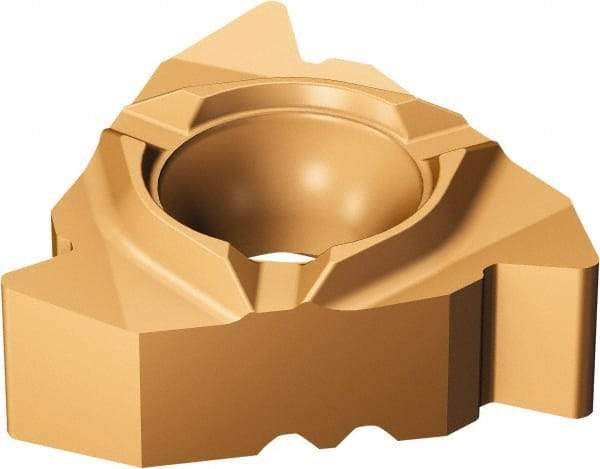

Sandvik Coromant - 26616 A Grade 1125, Internal BSPT Threading Insert - 11 TPI Int Pitch, Right Hand Insert, Carbide
Item #: 49377674
Brand: Sandvik Coromant
Model #: 5757975
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 16 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | BSPT |
| Manufacturer's Grade | 1125 |
| Internal Pitch/TPI | 11 TPI |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266RL16PT01A110E1125 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | A |
| Manufacturers Catalog Number | 5757975 |
