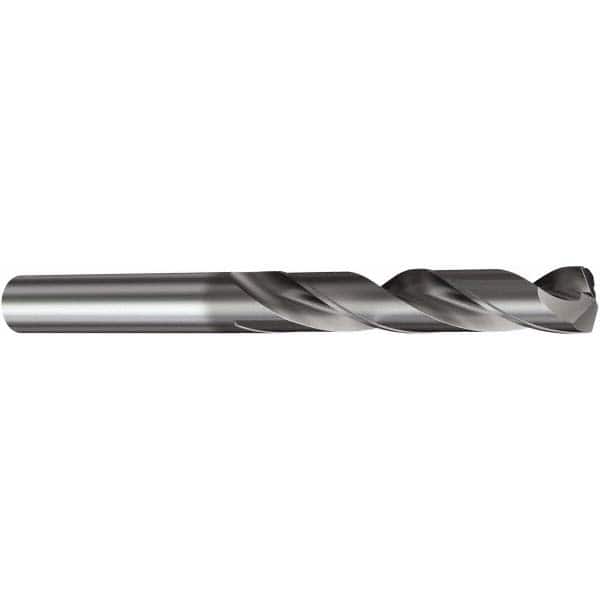

Screw Machine Length Drill Bit: 0.5311″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 460
Item #: 49377005
Brand: Sandvik Coromant
Model #: 6241470
Product Specifications
| Drill Bit Size (Inch) | 1/4 |
| Drill Bit Size (mm) | 13.49 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Drill Bit Size (Decimal Inch) | 0.5311 |
| Drill Tip Finish/Coating | TiAlN |
| Overall Length (Decimal Inch) | 4.2126 |
| Shank Diameter (mm) | 14.00 |
| Series | CoroDrill 460 |
| Drill Length Type | Regular |
| Maximum Drilling Depth (Decimal Inch) | 1.6732 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (mm) | 2.00 |
| Drill Point Length (Decimal Inch) | 0.0787 |
| Flute By Diameter Ratio | 3.15048xD |
| Flute Length (Decimal Inch) | 2.3622 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
| Specification Designation | ISO; DIN; ANSI |
