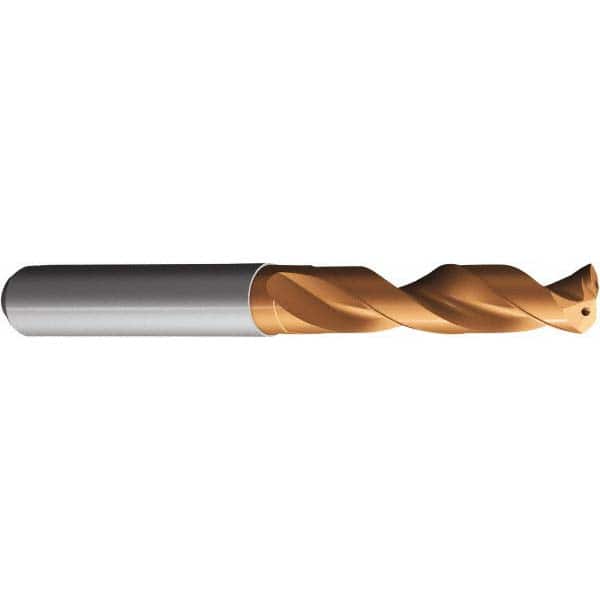

Jobber Length Drill Bit: 0.4528″ Dia, 140 °, Solid Carbide TiAlN Finish, 4.0158″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 49375173
Brand: Sandvik Coromant
Model #: 6256408
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4528 |
| Drill Bit Size (mm) | 11.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (Decimal Inch) | 4.0158 |
| Flute Length (Decimal Inch) | 2.1654 |
| Flute By Diameter Ratio | 3xD |
| Shank Diameter (mm) | 12.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.4331 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (mm) | 1.90 |
| Drill Point Length (Decimal Inch) | 0.0748 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
| Specification Designation | ISO; DIN; ANSI |
