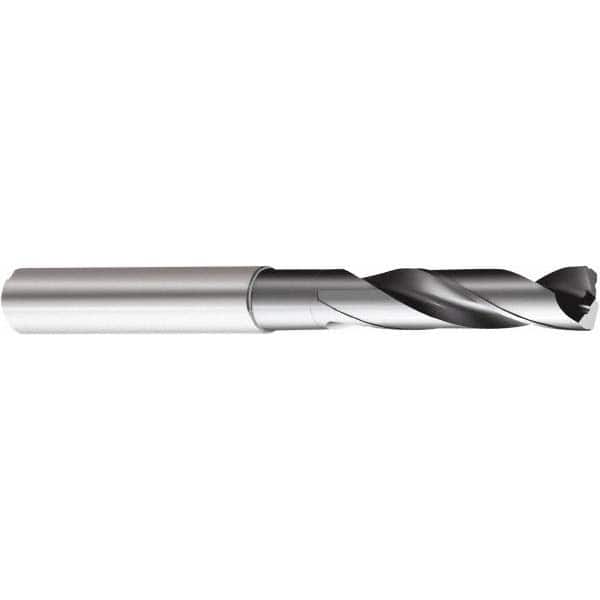

Screw Machine Length Drill Bit: 0.4331″ Dia, 150 °, Solid Carbide Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 861
Item #: 49370752
Brand: Sandvik Coromant
Model #: 6151123
Product Specifications
| Drill Bit Size (mm) | 11.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multilayer TiAlN |
| Drill Point Angle | 150 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Bit Size (Decimal Inch) | 0.4331 |
| Drill Tip Finish/Coating | TiAlN |
| Overall Length (Decimal Inch) | 4.0158 |
| Shank Diameter (mm) | 12.00 |
| Series | CoroDrill 861 |
| Drill Length Type | Regular |
| Maximum Drilling Depth (Decimal Inch) | 1.2992 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (mm) | 1.30 |
| Drill Point Length (Decimal Inch) | 0.0512 |
| Flute By Diameter Ratio | 3.11818xD |
| Drill Bit Diameter Tolerance | p7 |
| Flute Length (Decimal Inch) | 2.1654 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
| Specification Designation | ISO; DIN; ANSI |
