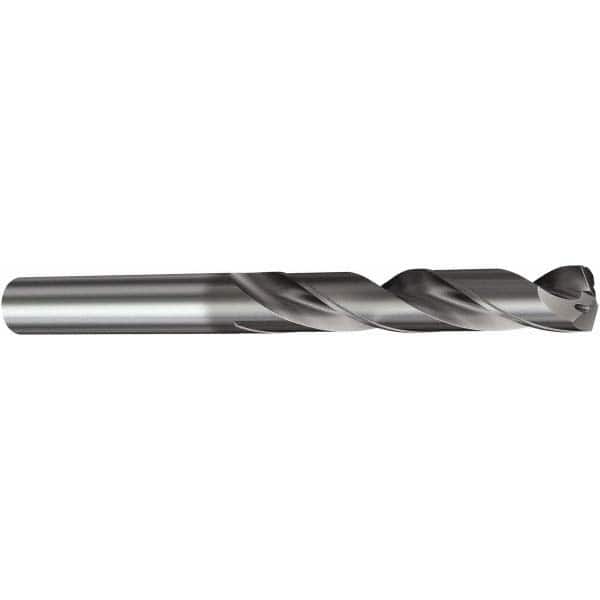

Screw Machine Length Drill Bit: 0.4531″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 460
Item #: 49368335
Brand: Sandvik Coromant
Model #: 6241308
Product Specifications
| Drill Bit Size (Inch) | 29/64 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Bit Size (Decimal Inch) | 0.4531 |
| Drill Tip Finish/Coating | TiAlN |
| Overall Length (Decimal Inch) | 4.0158 |
| Shank Diameter (mm) | 12.00 |
| Series | CoroDrill 460 |
| Drill Length Type | Regular |
| Maximum Drilling Depth (Decimal Inch) | 1.4252 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (Decimal Inch) | 0.0670 |
| Flute By Diameter Ratio | 3.14509xD |
| Flute Length (Decimal Inch) | 2.1654 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Specification Designation | ISO; DIN; ANSI |
