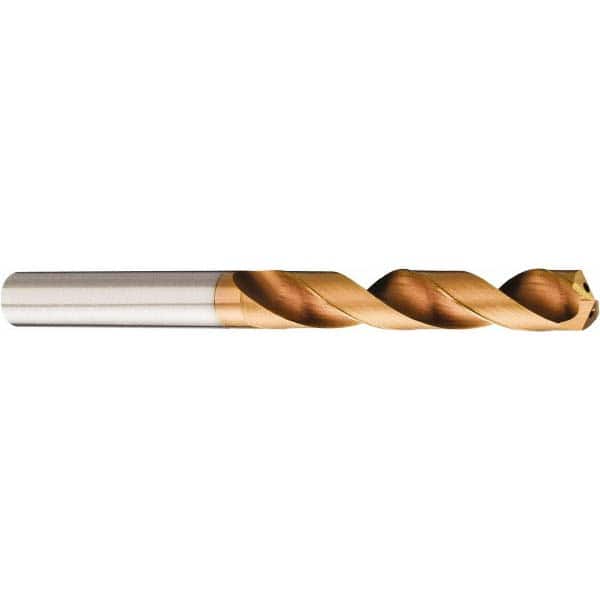

Jobber Length Drill Bit: 0.3281″ Dia, 140 °, Solid Carbide Multilayer TiAlN Finish, 4.0551″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 49368293
Brand: Sandvik Coromant
Model #: 5747476
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3281 |
| Drill Bit Size (Inch) | 21/64 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Multilayer TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 4.0551 |
| Flute Length (Decimal Inch) | 2.4016 |
| Flute By Diameter Ratio | 5.17407xD |
| Shank Diameter (mm) | 10.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.7323 |
| Shank Length (Decimal Inch) | 1.5748 |
| Drill Point Length (Decimal Inch) | 0.0550 |
| Drill Bit Diameter Tolerance | m7 |
| Specification Number | DIN 6537 |
| Drill Bit Grade | High Precision |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Specification Designation | ISO; DIN; ANSI |
