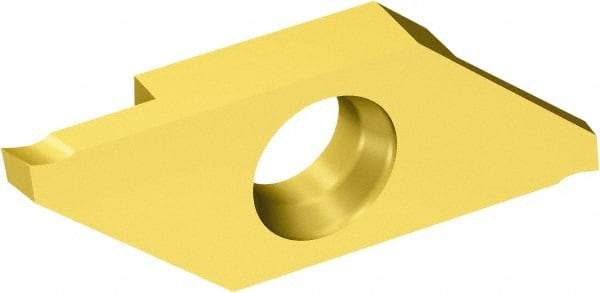

Sandvik Coromant - MACR3 MAC 1025 Grade, 0.0787" Cutting Width, Carbide Cutoff Insert - 20° Right Hand Lead Angle, 0.002" Cnr Rad, TiN/TiAlN Coated
Item #: 49345275
Brand: Sandvik Coromant
Model #: 5735430
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | MACR |
| Insert Size | 3 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 20 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | 1025 |
| Coating | TiN/TiAlN |
| Series | CoroCut XS |
| Relief Angle | 6 |
| Chipbreaker | MAC |
| Maximum Depth of Cut (mm) | 8.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3346 |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05 |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Seat Size | 3 |
| Width Tolerance | ±0.0008 (Inch) |
| Manufacturers Catalog Number | 5735430 |
