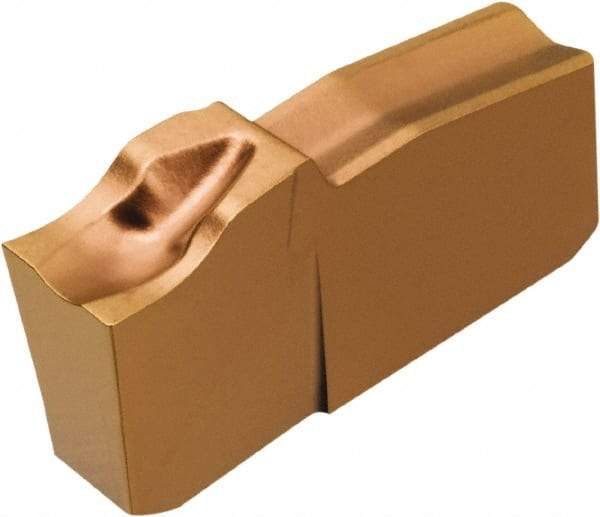

Sandvik Coromant - L151.230 5F 1125 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - 8° Left Hand Lead Angle, 0.0039" Cnr Rad, TiAlN Coated
Item #: 49345119
Brand: Sandvik Coromant
Model #: 5732828
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | L151.2 |
| Insert Size | 30 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Series | T-Max Q-Cut |
| Relief Angle | 7 |
| Chipbreaker | 5F |
| Multi-Use Application | Parting |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Insert Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | 30 |
| Manufacturers Catalog Number | 5732828 |
