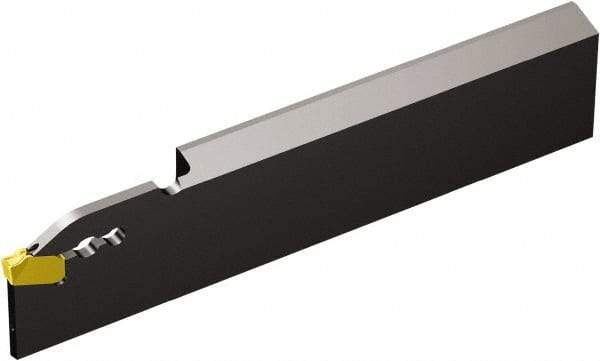

Sandvik Coromant - 33mm Max Depth of Cut, Right Hand Cut, Indexable Grooving Blade - 8.33mm Insert Width, G Seat Size, QD-LR..C..D Insert Style, Series CoroCut QD
Item #: 49344971
Brand: Sandvik Coromant
Model #: 6397270
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Maximum Insert Width (mm) | 8.33 |
| Maximum Insert Width (Decimal Inch) | 0.3280 |
| Maximum Depth of Cut (mm) | 33.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2992 |
| Series | CoroCut QD |
| Maximum Workpiece Diameter (mm) | 66.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.5984 |
| Blade Height (mm) | 25.90 |
| Blade Height (Decimal Inch) | 1.0197 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Manufacturers Catalog Number | 6397270 |
| Insert Style | QD-LR..C..D |
| Insert Seat Size | G |
| Cartridge Size | 21 |
| Complete Insert Compatibility | QD-NG-0300-0002-CM |
