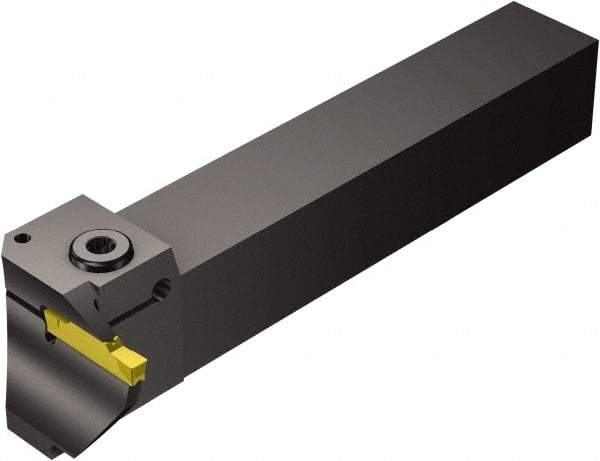

Sandvik Coromant - G123, Left Hand, 13mm Max Depth of Cut, Indexable Grooving Tool Holder - N123H2-0400-0004-TF Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 160.5mm OAL
Item #: 49344534
Brand: Sandvik Coromant
Model #: 5853794
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Maximum Depth of Cut (mm) | 13.00 |
| Overall Length (mm) | 160.50 |
| Overall Length (Decimal Inch) | 6.3189 |
| Toolholder Style | G123 |
| Insert Compatibility | N123H2-0400-0004-TF |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Seat Size | H |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Maximum Bore Depth (Decimal Inch) | 0.9409 |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5748 |
| Maximum Groove Outside Diameter (mm) | 60.00 |
| Minimum Axial Groove Inside Diameter(mm) | 40.00 |
| Head Length (mm) | 13.00 |
| Head Length (Decimal Inch) | 0.5118 |
| Manufacturers Catalog Number | 5853794 |
| Toolholder Material | Steel |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
