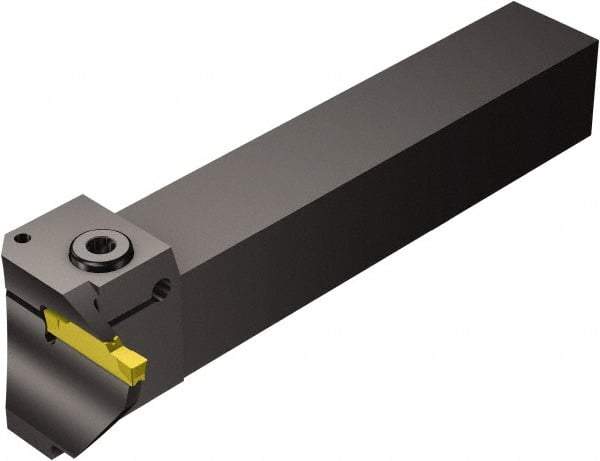

Sandvik Coromant - G123, Right Hand, 0.79" Max Depth of Cut, Indexable Grooving Tool Holder - N123L2-0800-0008-TF Insert Compatibility, 1" Shank Height, 1" Shank Width, 6.1614" OAL
Item #: 49343999
Brand: Sandvik Coromant
Model #: 5741378
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Overall Length (Decimal Inch) | 6.1614 |
| Toolholder Style | G123 |
| Insert Compatibility | N123L2-0800-0008-TF |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Seat Size | L |
| Minimum Hole Diameter (Decimal Inch) | 2.9528 |
| Maximum Bore Depth (Decimal Inch) | 1.4725 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.8500 |
| Maximum Groove Outside Diameter (mm) | 150.00 |
| Minimum Axial Groove Inside Diameter(mm) | 75.00 |
| Head Length (Decimal Inch) | 0.7900 |
| Manufacturers Catalog Number | 5741378 |
| Toolholder Material | Steel |
| Shank Diameter (Decimal Inch) | 1.0000 |
