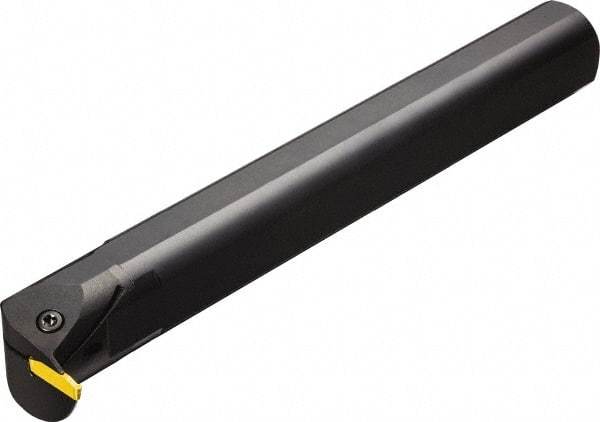

Sandvik Coromant - AG123, Internal, Right Hand, 13mm Max Depth of Cut, 6mm Max Groove Width, Indexable Grooving Tool Holder - N123..GM Insert Compatibility, 1.85" Shank Height, 13.7795" OAL, Through Coolant
Item #: 49343494
Brand: Sandvik Coromant
Model #: 5737476
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Overall Length (Decimal Inch) | 13.7795 |
| Toolholder Style | AG123 |
| Insert Compatibility | N123..GM |
| Shank Height (Decimal Inch) | 1.8500 |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Coolant Hole Diameter (Decimal Inch) | 0.4720 |
| Insert Holding Method | Screw |
| Insert Seat Size | K |
| Minimum Hole Diameter (Decimal Inch) | 2.3622 |
| Maximum Hole Depth (Decimal Inch) | 2.5590 |
| Maximum Bore Depth (Decimal Inch) | 2.5590 |
| igrvh Maximum Bore Depth (mm) | 65.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9250 |
| Center to Cutting Edge (Decimal Inch) | 1.5236 |
| Head Length (Decimal Inch) | 2.5591 |
| Shank Length (Decimal Inch) | 11.2205 |
| Manufacturers Catalog Number | RAG123K053-32B |
| Height to Shank Top (Decimal Inch) | 1.8500 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123K1-0600-0004-TF; N123K2-0600-0004-CR; N123K2-0600-0004-GM; N123K2-0600-0004-TF; N123K2-0600-0004-TM; N123K2-0600-0008-TM; N123K2-0635-0003-GM |
| Minimum Bore Diameter (Decimal Inch) | 2.3620 |
| Minimum BoreDiameter (mm) | 60.00 |
| Shank Diameter (Decimal Inch) | 2.0000 |
