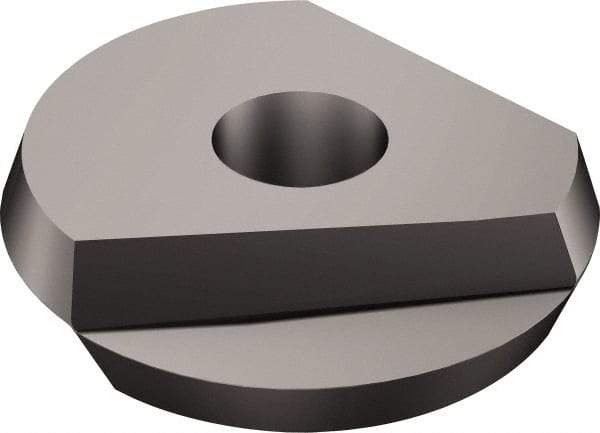

Sandvik Coromant - R216F0824 EL Grade P20A Carbide Milling Insert - TiAlN2 Finish, 2.4mm Thick, 8mm Inscribed Circle, 4mm Corner Radius
Item #: 49340219
Brand: Sandvik Coromant
Model #: 5743749
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R216F |
| Insert Size | 0824 |
| Material | Carbide |
| Manufacturer's Grade | P20A |
| Coating | TiAlN2 |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (mm) | 2.40 |
| Thickness (Decimal Inch) | 0.0945 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Corner Radius (mm) | 4.00 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | PVD |
| Shape | Ball Nose |
| Insert Hand | Right Hand |
| Chipbreaker | EL |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5743749 |
| ISO Number | R216F-08 24 E-L P20A |
