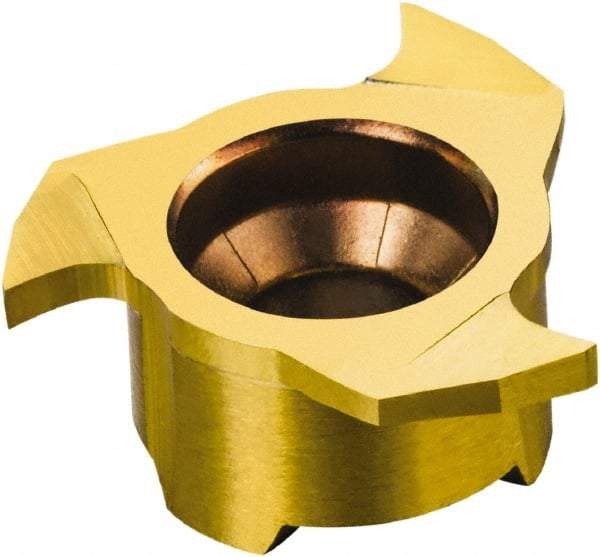

Sandvik Coromant - 327-GM GM Grade 1025 Carbide Groove Milling Tip Insert - TiAlN/TiN Finish, 3 Flutes, 9.7mm Cutting Diam, 1.5mm Depth of Cut, 3.5mm Extension, 0.0079" Cnr Rad
Item #: 49340011
Brand: Sandvik Coromant
Model #: 5758756
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | CoroMill 327 |
| Milling Tip Style | 327-GM |
| Milling Tip Type | Groove Milling |
| Material | Carbide |
| Cutting Diameter (mm) | 9.70 |
| Cutting Diameter (Decimal Inch) | 0.3820 |
| Manufacturer's Grade | 1025 |
| Depth of Cut (mm) | 1.50 |
| Depth of Cut (Decimal Inch) | 0.0590 |
| Number of Flutes | 3 |
| Coating | TiAlN/TiN |
| Milling Tip Full Description | Groove Milling |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Chipbreaker | GM |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Extension From Holder (mm) | 3.50 |
| Extension From Holder (Decimal Inch) | 0.1380 |
| Style | 327-GM |
| Manufacturers Catalog Number | 5758756 |
