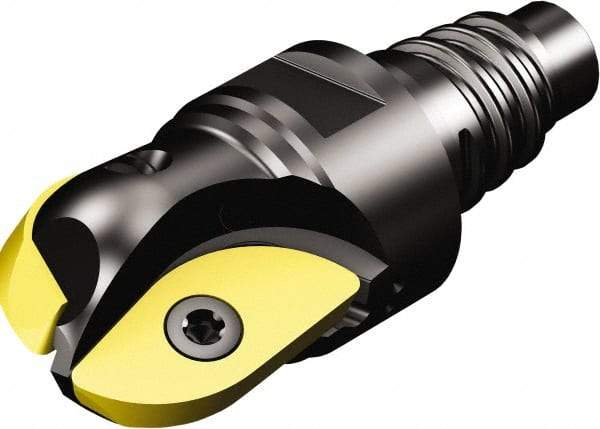

Sandvik Coromant - 12mm Cut Diam, 10.8mm Max Depth of Cut, 11.7mm Shank Diam, 33.8mm OAL, Indexable Ball Nose End Mill - 20mm Head Length, E12 Modular Connection, R216.. EH Toolholder, R216-12 02 Insert
Item #: 49338148
Brand: Sandvik Coromant
Model #: 6550036
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 10.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.4252 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | E12 |
| Shank Diameter (mm) | 11.70 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | R216-12 02 |
| Toolholder Style | R216.. EH |
| Series | CoroMill 216 |
| Overall Length (mm) | 33.80 |
| Overall Length (Decimal Inch) | 1.3307 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.4606 |
| Maximum RPM | 12700 |
| Projection (mm) | 20.00 |
| Projection (Decimal Inch) | 0.7874 |
