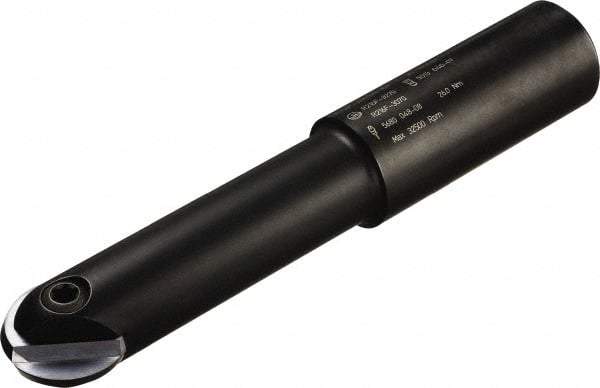

Sandvik Coromant - 10mm Cut Diam, 1.5mm Max Depth of Cut, 12mm Shank Diam, 132mm OAL, Indexable Ball Nose End Mill - 20.8mm Head Length, Straight Shank, R216F.. AS Toolholder, R216F-10.. Insert
Item #: 49337330
Brand: Sandvik Coromant
Model #: 5743719
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | R216F-10.. |
| Toolholder Style | R216F.. AS |
| Series | CoroMill 216F |
| Overall Length (mm) | 132.00 |
| Overall Length (Decimal Inch) | 5.1969 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 20.80 |
| Head Length (Decimal Inch) | 0.8189 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.4724 |
| Maximum RPM | 20300 |
| Projection (mm) | 87.00 |
| Projection (Decimal Inch) | 3.4252 |
