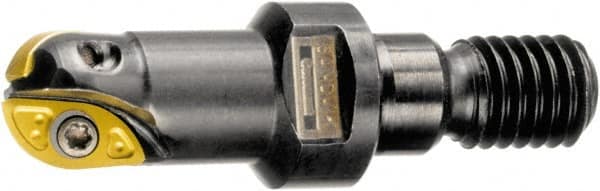

Sandvik Coromant - 25mm Cut Diam, 22.3mm Max Depth of Cut, 20.8mm Shank Diam, 57mm OAL, Indexable Ball Nose End Mill - 30.8mm Head Length, M12 Modular Connection, R216.. T Toolholder, R216-25 04 Insert
Item #: 49336894
Brand: Sandvik Coromant
Model #: 5743694
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 22.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.8780 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M12 |
| Shank Diameter (mm) | 20.80 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | R216-25 04 |
| Toolholder Style | R216.. T |
| Series | CoroMill 216 |
| Overall Length (mm) | 57.00 |
| Overall Length (Decimal Inch) | 2.2441 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 30.80 |
| Head Length (Decimal Inch) | 1.2126 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.8189 |
| Maximum RPM | 12700 |
| Projection (mm) | 35.00 |
| Projection (Decimal Inch) | 1.3780 |
