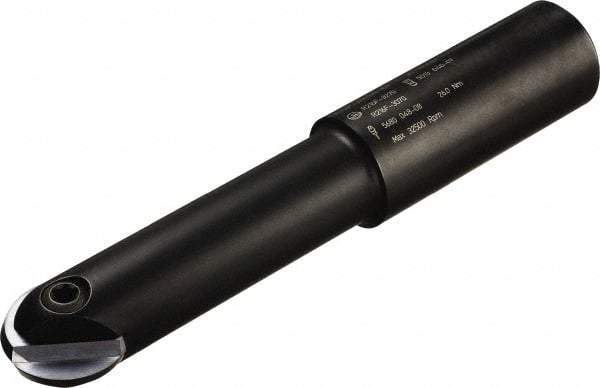

Sandvik Coromant - 1" Cut Diam, 0.1496" Max Depth of Cut, 1" Shank Diam, 6.5433" OAL, Indexable Ball Nose End Mill - 6.5433" Head Length, Straight Shank, RA216F.. OS Toolholder, RA216F-25.. Insert
Item #: 49336878
Brand: Sandvik Coromant
Model #: 5738642
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1496 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | RA216F-25.. |
| Toolholder Style | RA216F.. OS |
| Series | CoroMill 216F |
| Overall Length (Decimal Inch) | 6.5433 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 6.5433 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 1.0000 |
| Maximum RPM | 37100 |
| Projection (Decimal Inch) | 4.3386 |
