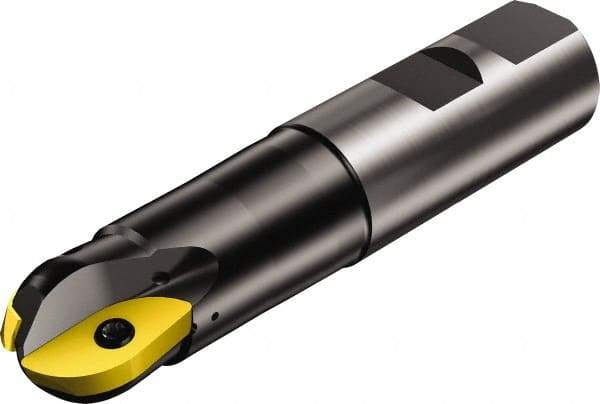

Sandvik Coromant - 2" Cut Diam, 1.791" Max Depth of Cut, 1-1/2" Shank Diam, 6.6874" OAL, Indexable Ball Nose End Mill - 6.6874" Head Length, Weldon Flat Shank, RA216.. M Toolholder, RA216-51 07 Insert
Item #: 49336548
Brand: Sandvik Coromant
Model #: 5738378
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 1.7910 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | RA216-51 07 |
| Toolholder Style | RA216.. M |
| Series | CoroMill 216 |
| Overall Length (Decimal Inch) | 6.6874 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 6.6874 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 1.5000 |
| Maximum RPM | 7000 |
| Projection (Inch) | 4 |
| Projection (Decimal Inch) | 4.0000 |
