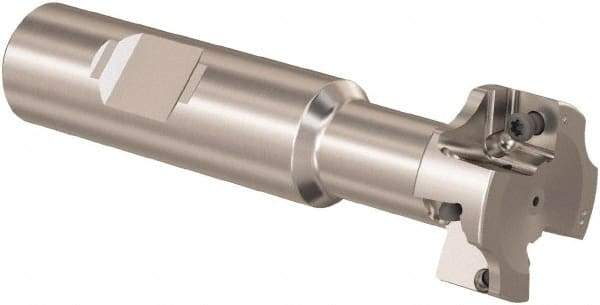

Seco - 25mm Cutting Diam 10.91mm Cutting Width, 4 Cutter Inserts, 16mm Shank Diam, Indexable T-Slot Cutter - Insert Style SPMX 07.., 80mm OAL, 2 Flutes
Item #: 49328735
Brand: Seco
Model #: 17107
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| T Slot Bolt Size (mm) | 12.00 |
| Cutting Width (mm) | 10.91 |
| Shank Diameter (mm) | 16.00 |
| Toolholder Style | R335.16 |
| Number of Cutter Inserts | 4 |
| Insert Style | SPMX 07.. |
| Staggered Tooth | Yes |
| Number of Flutes | 2 |
| Neck Diameter (mm) | 12.00 |
| Neck Length (Decimal Inch) | 0.6877 |
| Shank Length (mm) | 49.00 |
| Overall Length (mm) | 80.00 |
| Maximum Reach (Decimal Inch) | 1.1173 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Toolholder Material | Steel |
