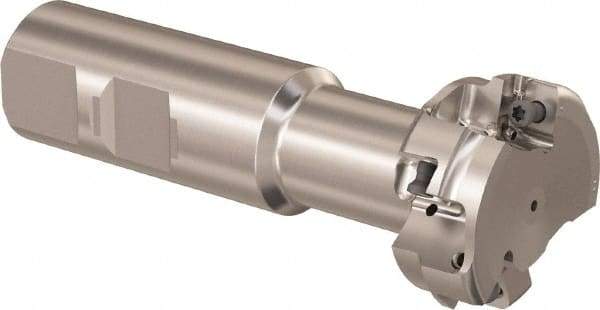

Seco - 40mm Cutting Diam 17.91mm Cutting Width, 5 Cutter Inserts, 25mm Shank Diam, Indexable T-Slot Cutter - Insert Style LNK. 08.., 105mm OAL, 2 Flutes
Item #: 49328719
Brand: Seco
Model #: 51538
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| T Slot Bolt Size (mm) | 20.00 |
| Cutting Width (mm) | 17.91 |
| Shank Diameter (mm) | 25.00 |
| Toolholder Style | R335.16 |
| Number of Cutter Inserts | 5 |
| Insert Style | LNK. 08.. |
| Staggered Tooth | Yes |
| Number of Flutes | 2 |
| Neck Diameter (mm) | 20.00 |
| Neck Length (Decimal Inch) | 1.0142 |
| Shank Length (mm) | 58.00 |
| Overall Length (mm) | 105.00 |
| Maximum Reach (Decimal Inch) | 1.7194 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Toolholder Material | Steel |
