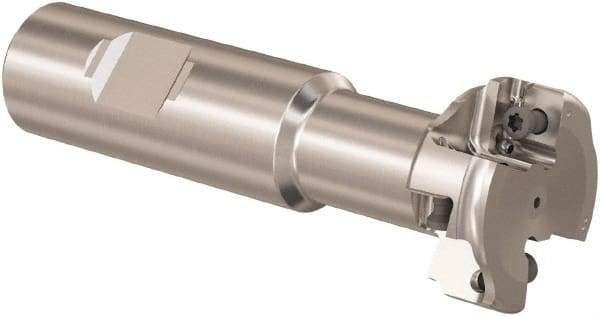

Seco - 31.73mm Cutting Diam 12.11mm Cutting Width, 4 Cutter Inserts, 1" Shank Diam, Indexable T-Slot Cutter - Insert Style LNK. 08.., 100mm OAL, 2 Flutes
Item #: 49328685
Brand: Seco
Model #: 51598
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.73 |
| Cutting Diameter (Decimal Inch) | 1.2492 |
| T Slot Bolt Size (mm) | 16.65 |
| Cutting Width (mm) | 12.11 |
| Shank Diameter (Inch) | 1 |
| Toolholder Style | R335.16 |
| Number of Cutter Inserts | 4 |
| Insert Style | LNK. 08.. |
| Staggered Tooth | Yes |
| Number of Flutes | 2 |
| Neck Diameter (mm) | 16.65 |
| Neck Length (Decimal Inch) | 0.7787 |
| Shank Length (mm) | 64.50 |
| Overall Length (mm) | 100.00 |
| Maximum Reach (Decimal Inch) | 1.2555 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Toolholder Material | Steel |
