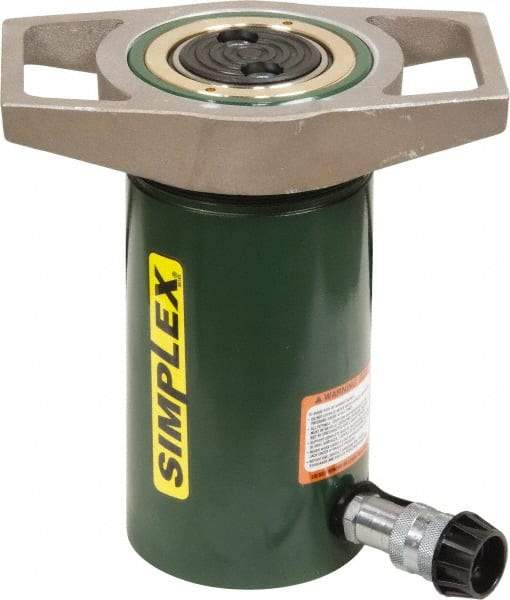

TK Simplex - 6-5/8" Stroke, 100 Ton Portable Hydraulic Single Acting Cylinder - 20.63 Sq In Effective Area, 137 Cu In Oil Capacity, 14.06 to 20.69" High, 4.13" Cyl Bore Diam, 5-1/8" Plunger Diam, 10,000 Max psi
Item #: 49268519
Brand: TK Simplex
Model #: R1006
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 100 |
| Piston Stroke (Decimal Inch) | 6.63 |
| Cylinder Bore Diameter (Decimal Inch) | 5.13 |
| Lowered Height | 14.06 |
| Oil Capacity | 137.00 |
| Effective Area | 20.63 |
| Maximum Height (Decimal Inch) | 20.69 |
| Outside Diameter (Inch) | 7 |
| Plunger Diameter | 4.13 |
| Base To Inlet Port (Inch) | 1-5/8 |
| Plunger Internal Thread Size | None |
| Collar Thread | 6-7/8 - 12 |
| Collar Thread Length (Inch) | 1.75 |
| Base Mounting Holes Bolt Circle (Inch) | 5-1/2 |
| Two Base Mounting Holes Thread Size | 3/4-10 |
| Base Mounting Hole Thread Depth (Inch) | 1.00 |
| Maximum Pressure (psi) | 10000 |
