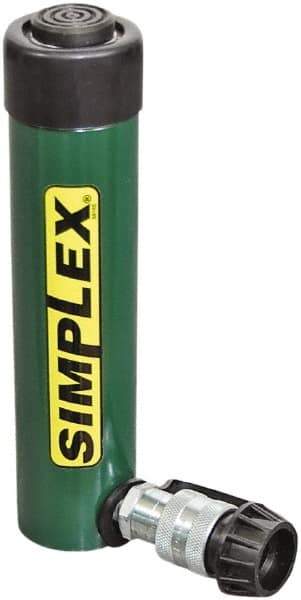

TK Simplex - 2-3/16" Stroke, 10 Ton Portable Hydraulic Single Acting Cylinder - 2.24 Sq In Effective Area, 4.18 Cu In Oil Capacity, 4.78 to 6.97" High, 1.5" Cyl Bore Diam, 1.69" Plunger Diam, 10,000 Max psi
Item #: 49268469
Brand: TK Simplex
Model #: R102
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 10 |
| Piston Stroke (Decimal Inch) | 2.19 |
| Cylinder Bore Diameter (Decimal Inch) | 1.69 |
| Lowered Height | 4.78 |
| Oil Capacity | 4.18 |
| Effective Area | 2.24 |
| Maximum Height (Decimal Inch) | 6.97 |
| Outside Diameter (Inch) | 2-1/4 |
| Plunger Diameter | 1.50 |
| Base To Inlet Port (Inch) | 3/4 |
| Plunger Internal Thread Size | 1 - 8 |
| Plunger Internal Thread Length | 0.75 |
| Collar Thread | 2-1/4 - 14 |
| Collar Thread Length (Inch) | 1.13 |
| Base Mounting Holes Bolt Circle (Inch) | 1-9/16 |
| Two Base Mounting Holes Thread Size | 5/16 - 18 |
| Base Mounting Hole Thread Depth (Inch) | 0.50 |
| Maximum Pressure (psi) | 10000 |
