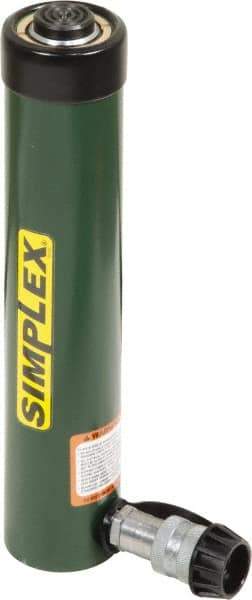

TK Simplex - 10-3/8" Stroke, 15 Ton Portable Hydraulic Single Acting Cylinder - 3.14 Sq In Effective Area, 31.4 Cu In Oil Capacity, 14.69 to 25.07" High, 1.63" Cyl Bore Diam, 2" Plunger Diam, 10,000 Max psi
Item #: 49268428
Brand: TK Simplex
Model #: R1510
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 15 |
| Piston Stroke (Decimal Inch) | 10.38 |
| Cylinder Bore Diameter (Decimal Inch) | 2.00 |
| Lowered Height | 14.69 |
| Oil Capacity | 31.40 |
| Effective Area | 3.14 |
| Maximum Height (Decimal Inch) | 25.07 |
| Outside Diameter (Inch) | 2-3/4 |
| Plunger Diameter | 1.63 |
| Base To Inlet Port (Inch) | 1 |
| Plunger Internal Thread Size | 1 - 8 |
| Plunger Internal Thread Length | 1.00 |
| Collar Thread | 2-3/4 - 16 |
| Collar Thread Length (Inch) | 1.19 |
| Base Mounting Holes Bolt Circle (Inch) | 1-7/8 |
| Two Base Mounting Holes Thread Size | 3/8 - 16 |
| Base Mounting Hole Thread Depth (Inch) | 0.50 |
| Maximum Pressure (psi) | 10000 |
