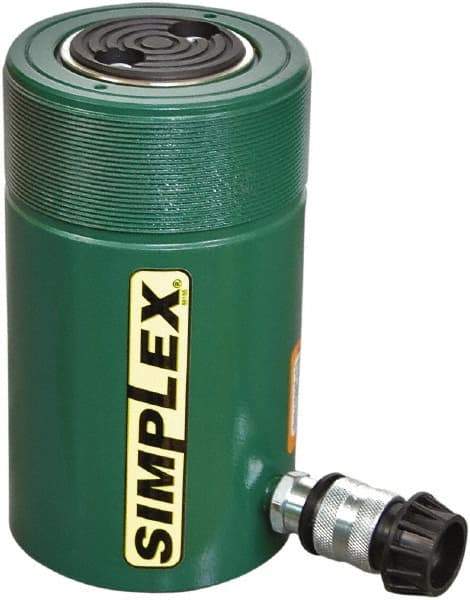

TK Simplex - 2" Stroke, 55 Ton Portable Hydraulic Single Acting Cylinder - 11.04 Sq In Effective Area, 22.08 Cu In Oil Capacity, 6.94 to 8.94" High, 3.13" Cyl Bore Diam, 3-3/4" Plunger Diam, 10,000 Max psi
Item #: 49268253
Brand: TK Simplex
Model #: R552
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 55 |
| Piston Stroke (Decimal Inch) | 2.00 |
| Cylinder Bore Diameter (Decimal Inch) | 3.75 |
| Lowered Height | 6.94 |
| Oil Capacity | 22.08 |
| Effective Area | 11.04 |
| Maximum Height (Decimal Inch) | 8.94 |
| Outside Diameter (Inch) | 5 |
| Plunger Diameter | 3.13 |
| Base To Inlet Port (Inch) | 1-3/8 |
| Plunger Internal Thread Size | None |
| Collar Thread | 5 - 12 |
| Collar Thread Length (Inch) | 2.81 |
| Base Mounting Holes Bolt Circle (Inch) | 3-3/4 |
| Two Base Mounting Holes Thread Size | 1/2 - 13 |
| Base Mounting Hole Thread Depth (Inch) | 0.75 |
| Maximum Pressure (psi) | 10000 |
