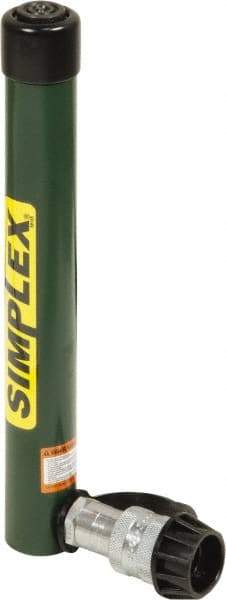

TK Simplex - 9-3/16" Stroke, 5 Ton Portable Hydraulic Single Acting Cylinder - 0.99 Sq In Effective Area, 9.07 Cu In Oil Capacity, 12.83 to 22.01" High, 1" Cyl Bore Diam, 1-1/8" Plunger Diam, 10,000 Max psi
Item #: 49268212
Brand: TK Simplex
Model #: R59
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 5 |
| Piston Stroke (Decimal Inch) | 9.18 |
| Cylinder Bore Diameter (Decimal Inch) | 1.13 |
| Lowered Height | 12.83 |
| Oil Capacity | 9.07 |
| Effective Area | 0.99 |
| Maximum Height (Decimal Inch) | 22.01 |
| Outside Diameter (Inch) | 1-1/2 |
| Plunger Diameter | 1.00 |
| Base To Inlet Port (Inch) | 3/4 |
| Plunger Internal Thread Size | 3/4 - 16 |
| Plunger Internal Thread Length | 0.75 |
| Collar Thread | 1-1/2 - 16 |
| Collar Thread Length (Inch) | 1.13 |
| Base Mounting Holes Bolt Circle (Inch) | 1 |
| Two Base Mounting Holes Thread Size | 1/4-20 |
| Base Mounting Hole Thread Depth (Inch) | 0.56 |
| Maximum Pressure (psi) | 10000 |
