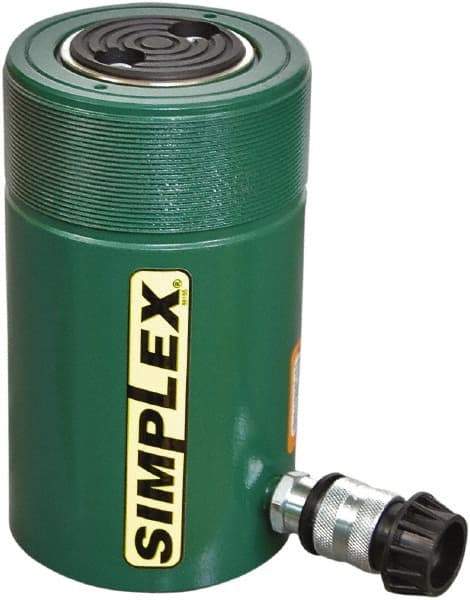

TK Simplex - 6" Stroke, 75 Ton Portable Hydraulic Single Acting Cylinder - 15.9 Sq In Effective Area, 95.4 Cu In Oil Capacity, 11.31 to 17.37" High, 3.75" Cyl Bore Diam, 4-1/2" Plunger Diam, 10,000 Max psi
Item #: 49268204
Brand: TK Simplex
Model #: R756
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 75 |
| Piston Stroke (Decimal Inch) | 6.00 |
| Cylinder Bore Diameter (Decimal Inch) | 4.50 |
| Lowered Height | 11.31 |
| Oil Capacity | 95.40 |
| Effective Area | 15.90 |
| Maximum Height (Decimal Inch) | 17.37 |
| Outside Diameter (Inch) | 5-3/4 |
| Plunger Diameter | 3.75 |
| Base To Inlet Port (Inch) | 1-3/16 |
| Plunger Internal Thread Size | None |
| Collar Thread | 5-3/4 - 12 |
| Collar Thread Length (Inch) | 1.75 |
| Maximum Pressure (psi) | 10000 |
