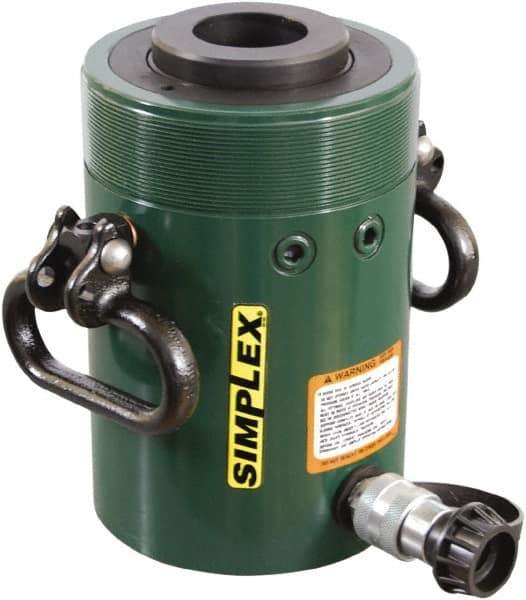

TK Simplex - 6" Stroke, 60 Ton Portable Hydraulic Hollow Hole Cylinder - 12.73 Sq In Effective Area, 76.41 Cu In Oil Capacity, 12.75 to 18.75" High, 3-5/8" Plunger Diam, 10,000 Max psi
Item #: 49268121
Brand: TK Simplex
Model #: RC606A
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hollow Hole |
| Load Capacity (Ton) | 60 |
| Piston Stroke (Decimal Inch) | 6.00 |
| Lowered Height | 12.75 |
| Oil Capacity | 76.41 |
| Effective Area | 12.73 |
| Maximum Height (Decimal Inch) | 18.75 |
| Outside Diameter (Inch) | 6-1/4 |
| Plunger Diameter | 3.62 |
| Base To Inlet Port (Inch) | 1-1/4 |
| Collar Thread | 6-1/4 - 12 |
| Collar Thread Length (Inch) | 1.91 |
| Y Center Hole Diameter | 2.12 |
| Base Mounting Holes Bolt Circle (Inch) | 5-1/8 |
| Two Base Mounting Holes Thread Size | 1/2 - 13 |
| Base Mounting Hole Thread Depth (Inch) | 0.55 |
| Maximum Pressure (psi) | 10000 |
