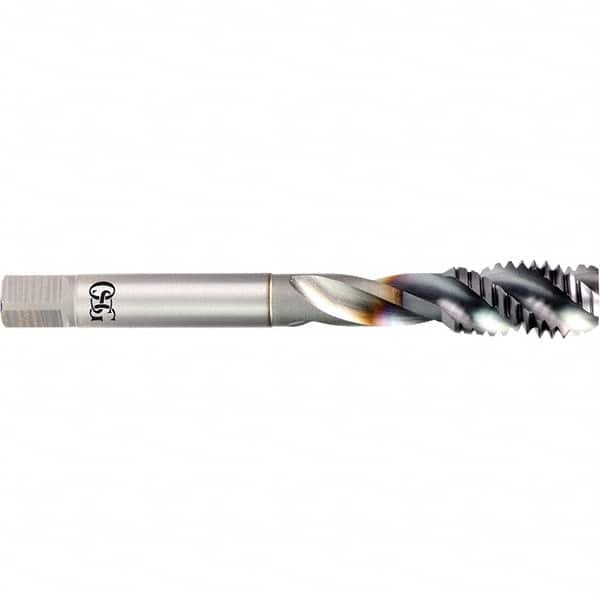

OSG - 5/8-18 UNF 4 Flute Semi-Bottoming Spiral Flute Tap - Powdered Metal, V Finish, 3-13/16" OAL, Right Hand Flute, Right Hand Thread, H5, Series 313
Item #: 49195639
Brand: OSG
Model #: 1305713708
Exact Tooling IR#: 04
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
V is a multi-layered TiCN coating that is harder and has greater wear resistance than TiN. It is used for applications in cast iron, steel, stainless steel, nickel alloys and aluminum. V is a proprietary coating exclusive to OSG Tap and Die, Inc.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/8-18 |
| Chamfer | Semi-Bottoming |
| Thread Limit | H5 |
| Number of Flutes | 4 |
| Material | Powdered Metal |
| Finish/Coating | V |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 3-13/16 |
| Helix Angle | 10 |
| Thread Standard | UNF |
| Thread Length (Inch) | 1 |
| Series/List | 313 |
| Shank Diameter (Decimal Inch) | 0.4800 |
