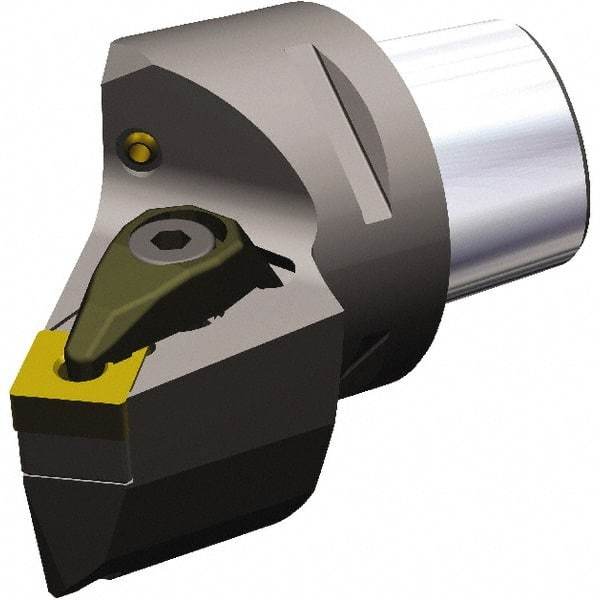

Kennametal - Right Hand Cut, Size PSC63, SN..120408 & SN..432 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 56mm Head Length, Through Coolant, Series PSC
Item #: 49072127
Brand: Kennametal
Model #: 6341413
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC63 |
| Series Name | PSC |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 56.00 |
| Head Length/Projection (Decimal Inch) | 2.2047 |
| Insert Style | SN..120408; SN..432 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7717 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 56.00 |
| Minimum Hole Diameter (mm) | 110.00 |
| Complete Insert Compatibility | SN..120408/SN..432 |
