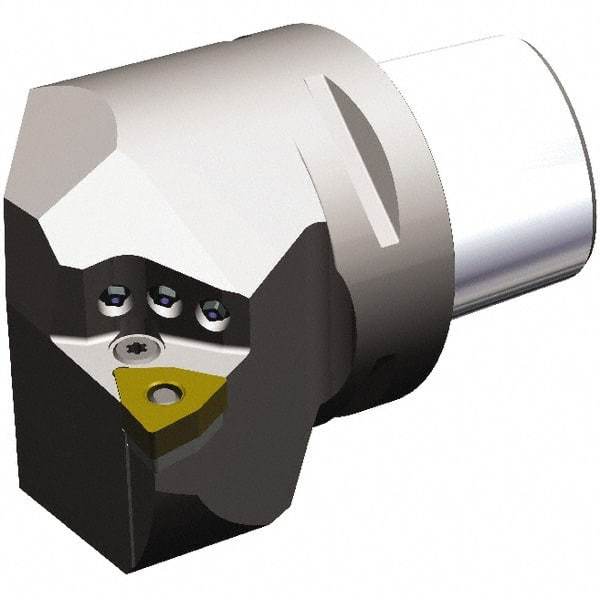

Kennametal - Left Hand Cut, Size PSC63, WN.. 0804.. & WN.. 432 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series PSC
Item #: 49071939
Brand: Kennametal
Model #: 6340101
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC63 |
| Series Name | PSC |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5590 |
| Insert Style | WN.. 0804..; WN.. 432 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7720 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Minimum Hole Diameter (mm) | 110.00 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -6 |
