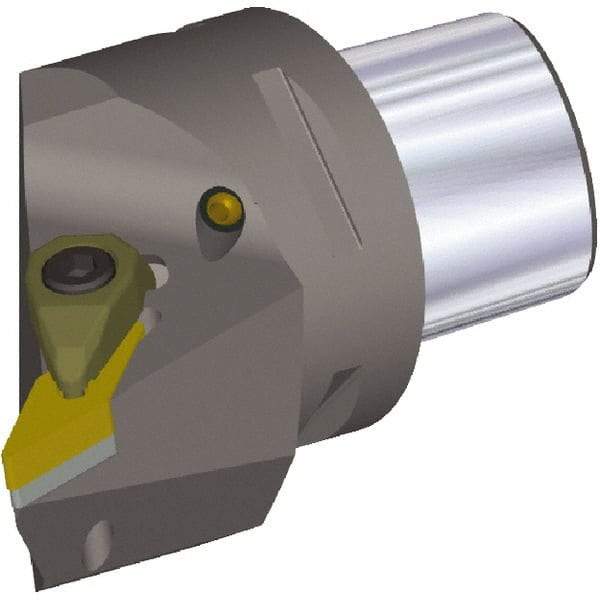

Kennametal - Left Hand Cut, Size PSC63, VN.. 1604 & VN.. 332 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series PSC
Item #: 49071731
Brand: Kennametal
Model #: 6340896
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC63 |
| Series Name | PSC |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Insert Style | VN.. 1604; VN.. 332 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7717 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Minimum Hole Diameter (mm) | 81.00 |
| Axial Rake Angle | -13 |
| Radial Rake Angle | -5 |
