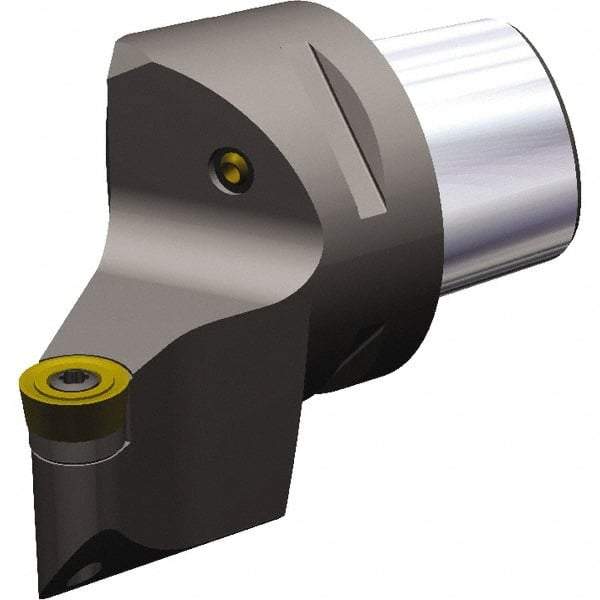

Kennametal - Left Hand Cut, Size PSC63, RC.. 2006M0 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series PSC
Item #: 49071699
Brand: Kennametal
Model #: 6341320
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC63 |
| Series Name | PSC |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Insert Style | RC.. 2006M0 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7717 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Axial Rake Angle | 0.00 |
| Radial Rake Angle | 0 |
